AD CONTROLLER series

The torque control system features error-proofing capabilities and screw counting. Multiple fastening strategies can be implemented for sensitive and/or difficult assembly joints. The system increases productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space and training.




Categories: ,

Description

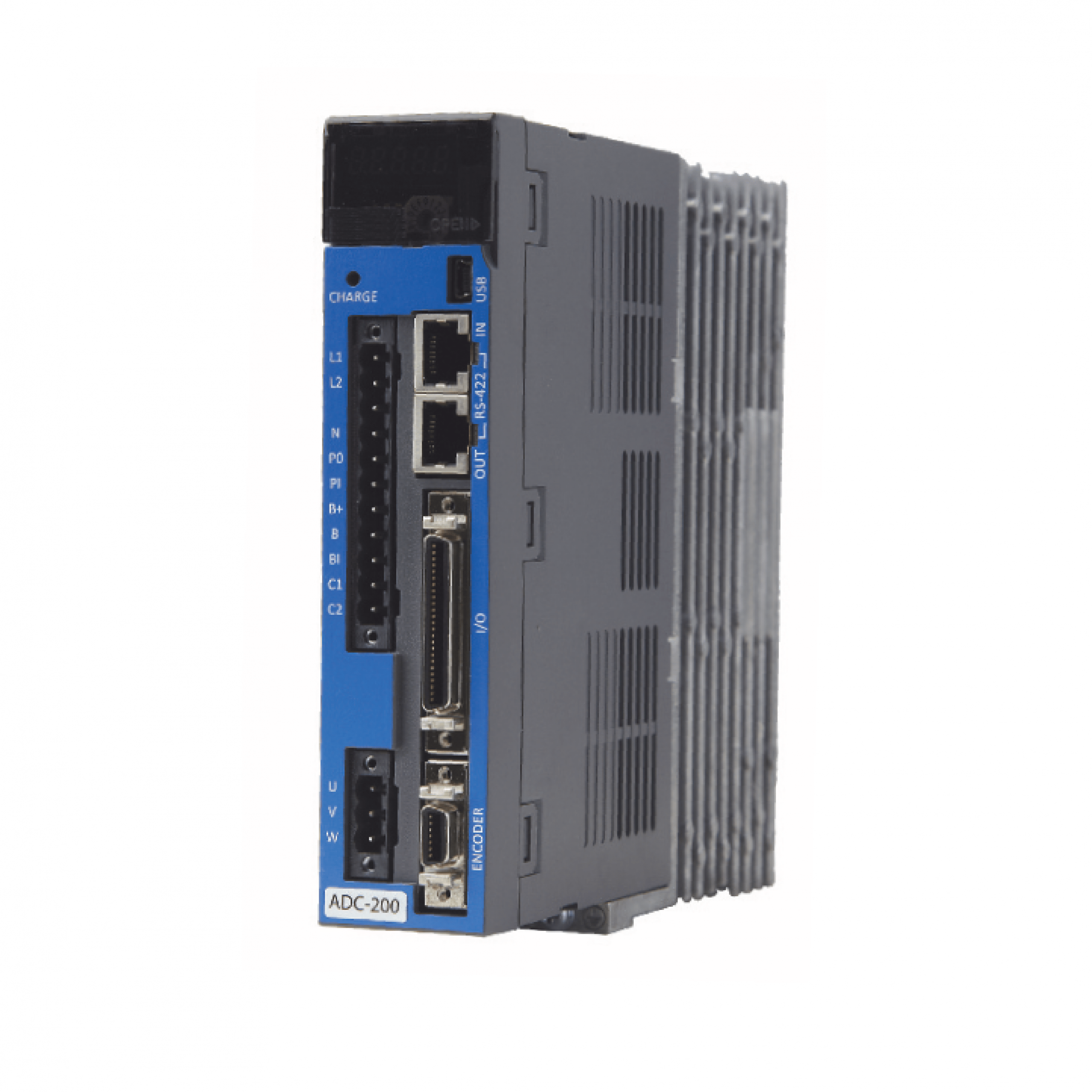

The MD or AD-Series is a durable torque and automation control system engineered for precise, accurate and repeatable torque control. The high performance torque fastening system by Mountz allows manufacturers to optimize the assembly area, reduce labor costs and increase productivity. The DC control tool delivers cost savings and quality benefits through useful features such as digitally adjustable torque setting, variable torque and speed control, multiple I/O options for integration with PLC and other line control techniques. A Windows-based software package that can customize each fastening application is included with the product.
The torque control system features error-proofing capabilities and screw counting. Multiple fastening strategies can be implemented for sensitive and/or difficult assembly joints. The system increases productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space and training.

Applications

  • All assembly requirements for  critical and quality critical applications
  • All assembly process where is require more different range of tightening torque
  • All assembly process where traceability is require

Strengths

– Productivity               – Increase productivity with one tool instead of 2 – 8 tools. Provides consistent repeatable process control and eliminates potential variations.

– Flexibility               – Easy integration into production line. Rapid
reconfiguration for new production projects.

– ROI:                          –  Optimum asset utilization. Tooling expense delivers favorable return of investment.

– Quality:                     Traceability and error-proofing. Real time monitoring. Swiss DC servo motor provides precise, accurate and repeatable torque control.

– I / O Interface        –

– Controller :                Up to 15 process sequences with 10 program steps.

– Memory:                  Collect and save all fastening data on SD memory card.

– Torque Analysis                      Fastening torque data analysis (Standard Deviation,Mean, Average, CP, CPK) with TPM (Torque Process Monitoring) Touch Screen accessory option.

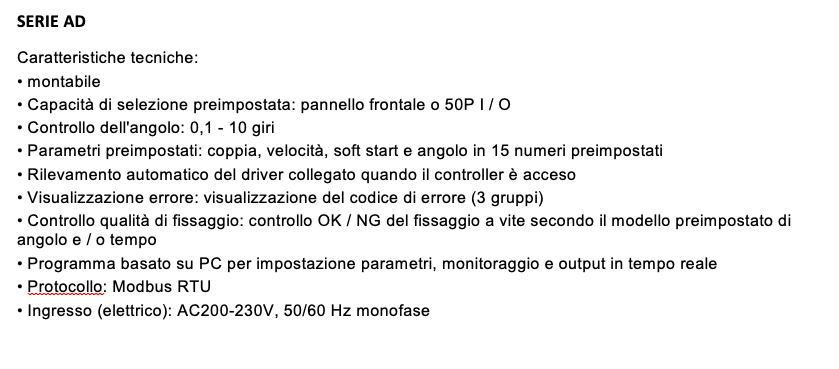

Table

Schermata 2019 07 12 alle 11.44.35 Avvitatori per assemblaggio industriale The torque control system features error-proofing capabilities and screw counting. Multiple fastening strategies can be implemented for sensitive and/or difficult assembly joints. The system increases productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space and training.
